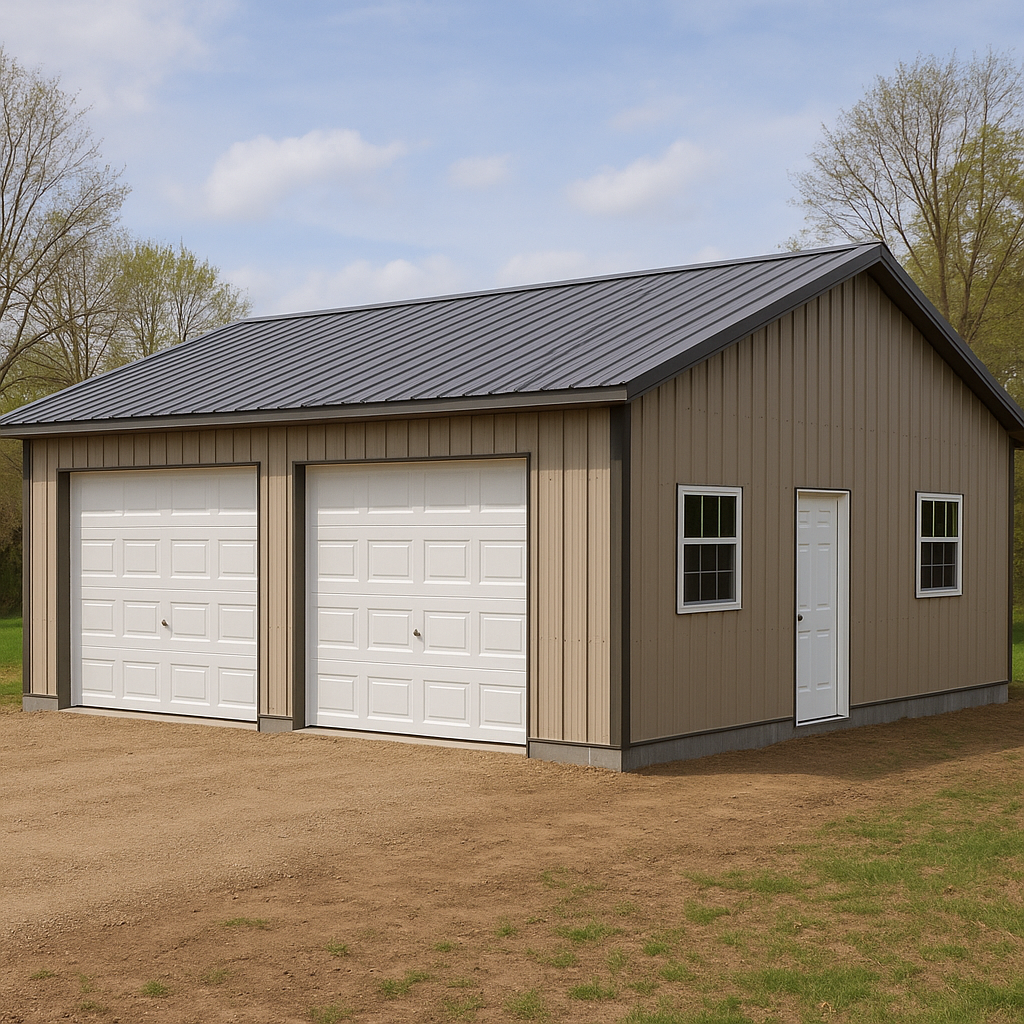

AI-generated image of a beige metal garage with double white doors, a side white door, and two small windows, set on a dirt area with green trees and a blue sky with clouds in the background.

AI-generated image of a pole barn

Specifications

  • Dimensions (typical):

    • Width: 24ft

    • Length: 32ft

    • Height: 10 wall height

  • Garage Doors: (2) 10x8 ft overhead sectional doors

  • Man Door: 36" x 80" insulated steel entry door

  • Windows: (2) 3x4 ft vinyl-framed sliding or single-hung

  • Roof Style: Gable, 4/12 or 5/12 pitch

  • Foundation: Post-frame with treated posts anchored on a monolithic slab (18”-24” depth on edge)

Structural Frame

  • 3-ply Laminated 2x6

  • Treated skirt board (2x8 PT)

  • Girts (2x6 lumber, horizontal framing between posts)

  • Trusses (engineered wood trusses spaced 4' on center)

  • Purlins (2x4, horizontal framing to support roof panels)

Roof

  • 29-gauge painted steel roofing panels (40-year warranty)

  • Ridge cap, eave trim, closures

  • Vapor barrier or roof insulation (optional but recommended)

Siding

  • 29-gauge painted steel siding panels

  • J-channel, corner trim, base trim

Doors & Windows

  • (2) insulated overhead garage doors with hardware

  • (1) insulated steel entry door with lockset

  • (2) vinyl windows with screens

Foundation/Floor

  • Monolithic concrete pad minimum 18–24" deep

  • 4"–6" reinforced concrete slab for garage floor (optional but standard)

Hardware & Fasteners

  • Galvanized nails, screws, bolts, and brackets

  • Post anchors or uplift protection hardware

  • Door tracks, openers (if automated)
