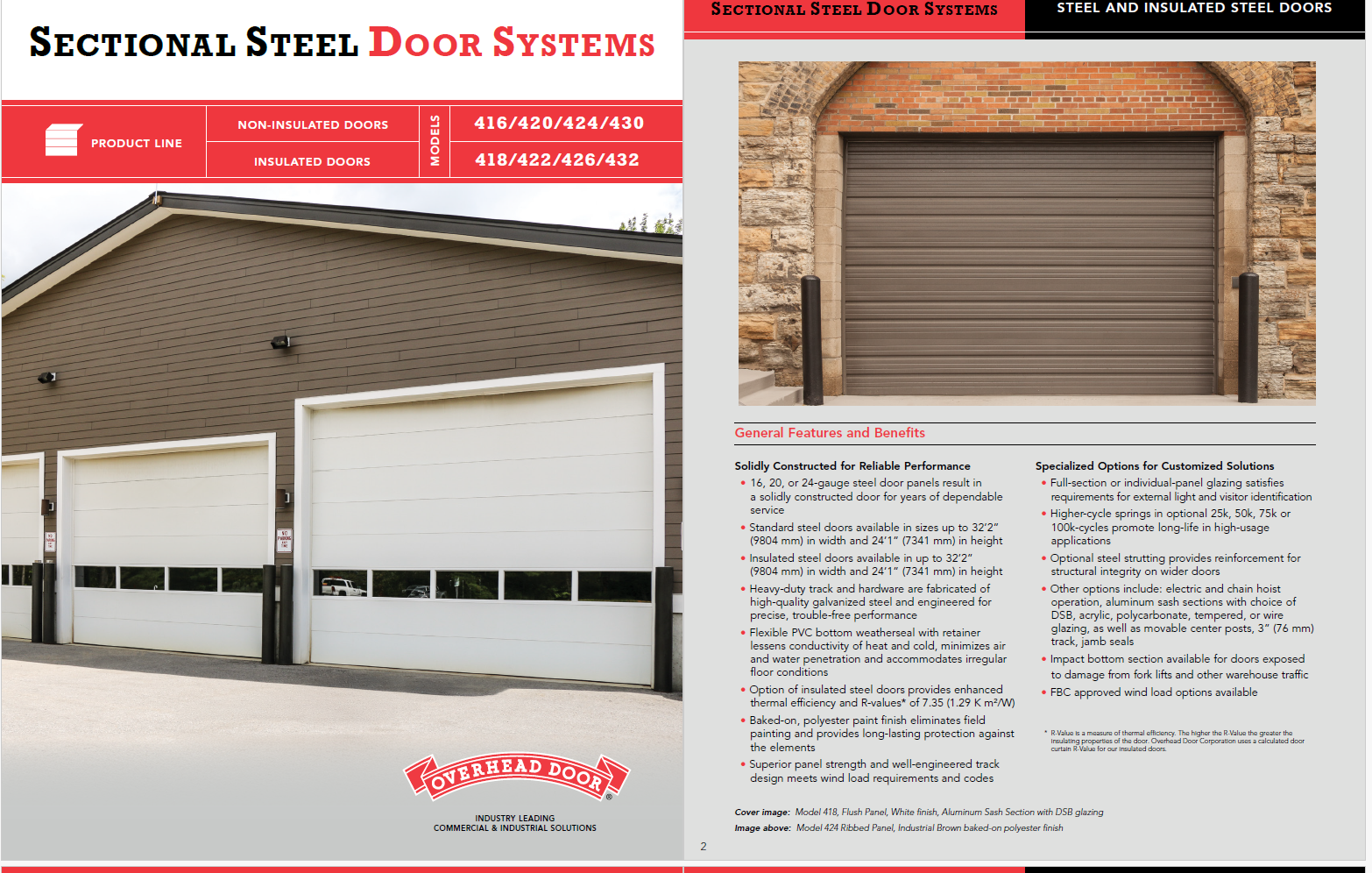

Overview of Steel Door Systems and Features
This document details the specifications, options, and models of Overhead Door's commercial steel sectional door systems, emphasizing durability, customization, and industry-leading solutions.
Product Line and Model Variants
Overhead Door offers both non-insulated and insulated steel sectional doors with models 416/420/424/430, including specialized options for various industrial applications.
Non-insulated models: 416, 418, 422, 426, 430, 432
Insulated models: 418, 422, 426, 432
Models feature sizes up to 32’2” (9804 mm) in width and 24’1” (7341 mm) in height
Model 416 designed for high security and frequent use; Model 420/424 for heavy-duty applications; Model 430 for small warehouses; Model 418 for manufacturing and warehouse; Models 422/426 for loading docks; Model 432 for medium-duty applications
Construction and Material Specifications
Steel doors are constructed with galvanized steel panels of various gauges, with insulation options providing R-values of 7.35 for thermal efficiency.
Panel gauges: 16, 20, 24, or nominal 24-gauge steel
Panel thickness: 2 inches (51 mm)
Exterior finishes: White baked-on polyester, Industrial Brown (on some models)
Insulation: Expanded polystyrene with R-value of 7.35
Panel styles: Ribbed and Flush
Heavy-duty galvanized steel hardware and tracks for reliable performance
Wind load options available, including FBC approved
Customization and Optional Features
Doors can be customized with glazing, higher-cycle springs, impact-resistant bottoms, electric operation, and various weatherseals.
Glazing options: Aluminum sash with DSB, acrylic, polycarbonate, tempered, wired
Spring cycles: 25k, 50k, 75k, 100k for high-usage durability
Impact bottom sections for damage resistance
Additional options: electric operators, chain hoists, exhaust ports, movable center posts, jamb seals, and locks
Full or individual panel glazing for light and visibility
Standard and Technical Specifications
Key specifications include maximum widths (up to 32’2” for non-insulated, 31’2” for some models), heights, and standard features like 16-gauge steel end and intermediate stiles, and 10,000 cycle springs.
Nominal thickness: 2 inches (51 mm)
Track configurations: 2” (51 mm) or 3” (76 mm) with various radius options
Mounting options: angle, full vertical, low headroom
Sideroom requirements vary by track type and door size
Minimum headroom and backroom dimensions provided for different track configurations
Electric Operators and Safety Features
Overhead Door provides a range of electric operators (RHX®, RSX®, RMX®, RMZ®) suitable for different door sizes and weights, with mounting options including trolley, side, and center mount.
Operators support safety features like interlock switches and safety edges
Control options include push-button, key, wireless, vehicle detectors, and more
Industry recommendations emphasize safety devices for electrically operated doors
Mounting options: trolley, side mount, center mount, with specific headroom and sideroom requirements
Installation and Framing Details
Detailed framing and pad requirements for steel, wood, concrete, and masonry jambs are provided, with minimum sideroom and headroom specifications for different track types.
Track types: 2” and 3” with specific minimum siderooms
Headroom requirements vary based on track and door height
Special considerations for low headroom and full vertical track configurations
Additional installation guidance available through technical manuals and consulting
Company Legacy and Industry Leadership
Overhead Door pioneered the upward-acting sectional door in 1921 and electric door operators in 1926, maintaining industry leadership through innovation, craftsmanship, and extensive customer support.
Over 400 distributors across U.S. and Canada
Emphasis on product quality, innovation, and customer service
Industry leader in commercial and industrial door solutions
Trademark and Intellectual Property Rights
The document emphasizes the ownership of trademarks and the company's rights regarding product specifications. - Overhead Door is a registered trademark. - The Red Ribbon logo is a registered trademark of Overhead Door Corporation. - All other trademarks belong to their respective owners. - The company reserves the right to change product specifications without notice. - The document is copyrighted in 2025 by Overhead Door Corporation.
Product Improvement and Specification Changes
The company maintains a policy of ongoing product enhancement and flexibility in product details. - Committed to continuous product improvement. - Product specifications may be changed at any time. - Changes can be made without prior notice or obligation. - The policy ensures the company stays current with technological and market advancements.

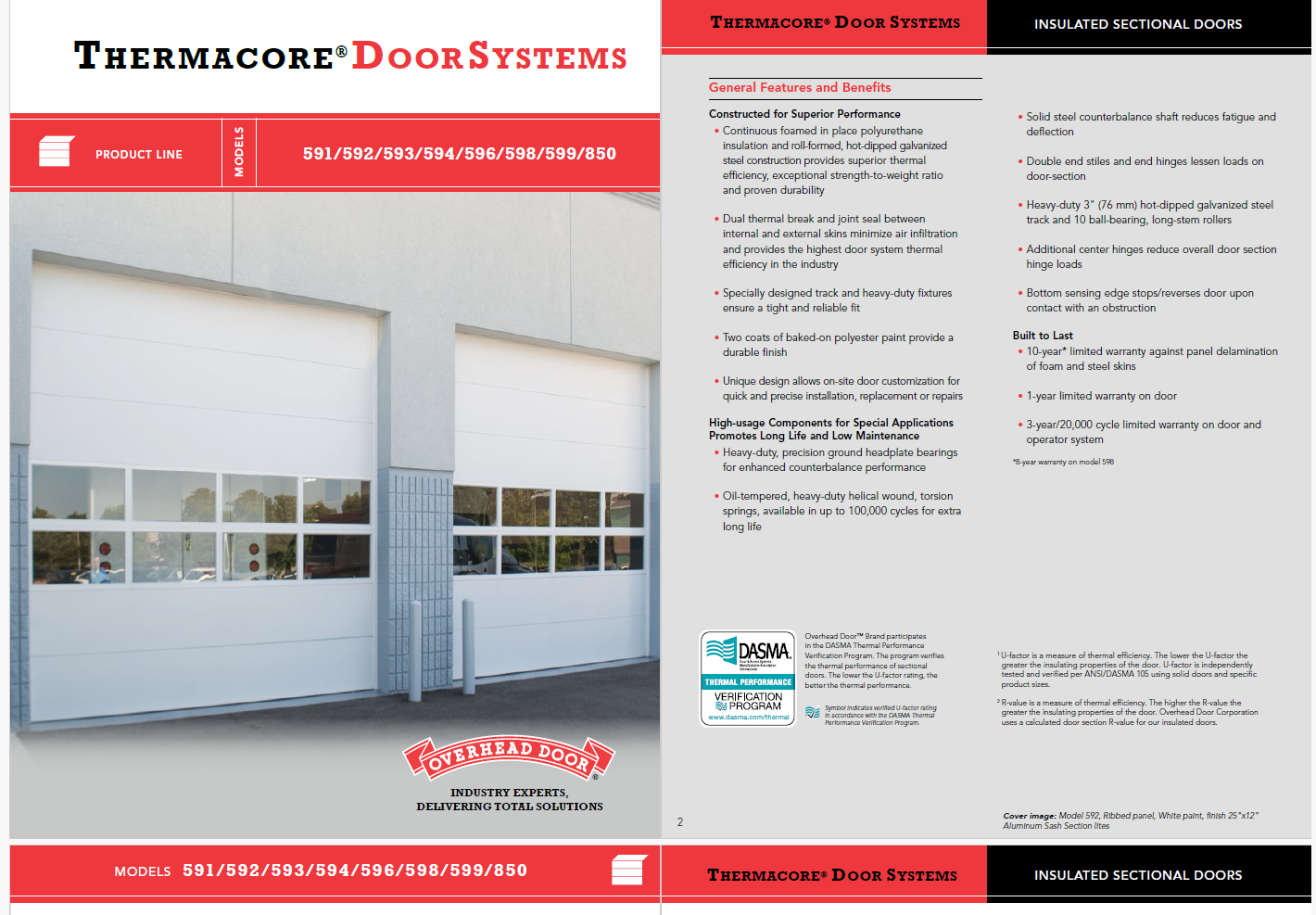

Thermacore® Door System Overview
A comprehensive line of insulated, durable, and customizable sectional doors designed for various industrial and commercial applications with high thermal efficiency and long-lasting performance.
Product Line and Model Variants
Multiple models (591/592/593/594/596/598/599/850) cater to different duty levels, sizes, and insulation needs, with specific features and warranties.
Models range from heavy-duty (591/592/599) to medium-duty (593/594) and extra-heavy-duty (596), with model 850 offering advanced performance.
Sizes vary, with maximum widths up to 40'2" and heights up to 32'1".
Warranties include 10-year delamination, 1-year on door, and 3-year/20,000 cycle on door and operator systems; model 598 has an 8-year warranty.
Optional features include thermal glazing, pass doors, high-usage components, wind load options, and electric operators.
Construction and Insulation Features
Constructed for superior thermal performance, strength, and durability.
Continuous foamed polyurethane insulation in roll-formed galvanized steel skins.
Dual thermal break and joint seal minimize air infiltration.
Specially designed tracks and fixtures ensure precise fit.
Two coats of baked polyester paint for durability.
Panel thickness varies from 1" to 3", with U-factors from 0.07 to 0.20 and R-values from 9.31 to 26.
Insulation and steel gauge options tailored to application needs.
Panel and Glazing Options
Variety of panel styles and glazing options for different models.
Models 591/592/593/598: ribbed, double thermal acrylic, aluminum sash with DSB glazing, clear long panels.
Model 594: raised panel, insulated DSB, aluminum sash.
Models 596/599: flush panel, double thermal acrylic, aluminum sash, insulated DSB, clear long.
Model 850: microgroove textured panels with large insulated or polycarbonate lites, color-matched frames available.
Thermal Performance and Specifications
High thermal efficiency with low U-factors and high R-values.
U-factors range from 0.07 (model 850) to 0.20 (model 598).
R-values range from 9.31 to 26.
Air infiltration rates as low as 0.08 cfm/ft² at 25 mph.
Meets IECC standards for U-factor and air infiltration.
Thermal break types include PVC, hot melt, and dual barriers.
Track and Framing Details
Multiple track configurations for various installation needs.
Standard lift, lift clearance, and full vertical tracks.
Low headroom options available with specific headroom and backroom requirements.
Framing options for steel, wood, concrete, and masonry jambs.
Minimum siderooms and headroom vary by track type and application.
Electric Operators and Safety Features
Wide range of operators for different door sizes and duty cycles.
Model RHX (heavy-duty), RSX (standard-duty), RMZ (medium-duty).
Mounting options include trolley, side mount, and center mount.
Safety features include primary safety devices, photo-eyes, sensing edges, and emergency stop options.
Mounting details specify minimum headroom and siderooms for each operator type.
Industry Standards and Certifications
Participation in DASMA Thermal Performance Verification Program.
Verified U-factors and compliance with ANSI/DASMA 105.
Industry leader with a legacy dating back to 1921, pioneering sectional garage doors and electric operators.
Over 400 distributors across U.S. and Canada ensuring product support and service.
Additional Options and Customizations
Available options include thermal glazing, high-cycle springs, wind load enhancements, exhaust ports, and custom colors.
Optional colors Trinar White, Trinar Brown, and Trinar Beige.
Exterior and interior color choices vary by model.
Optional accessories like pass doors, safety fixtures, and weather seals enhance functionality and performance.

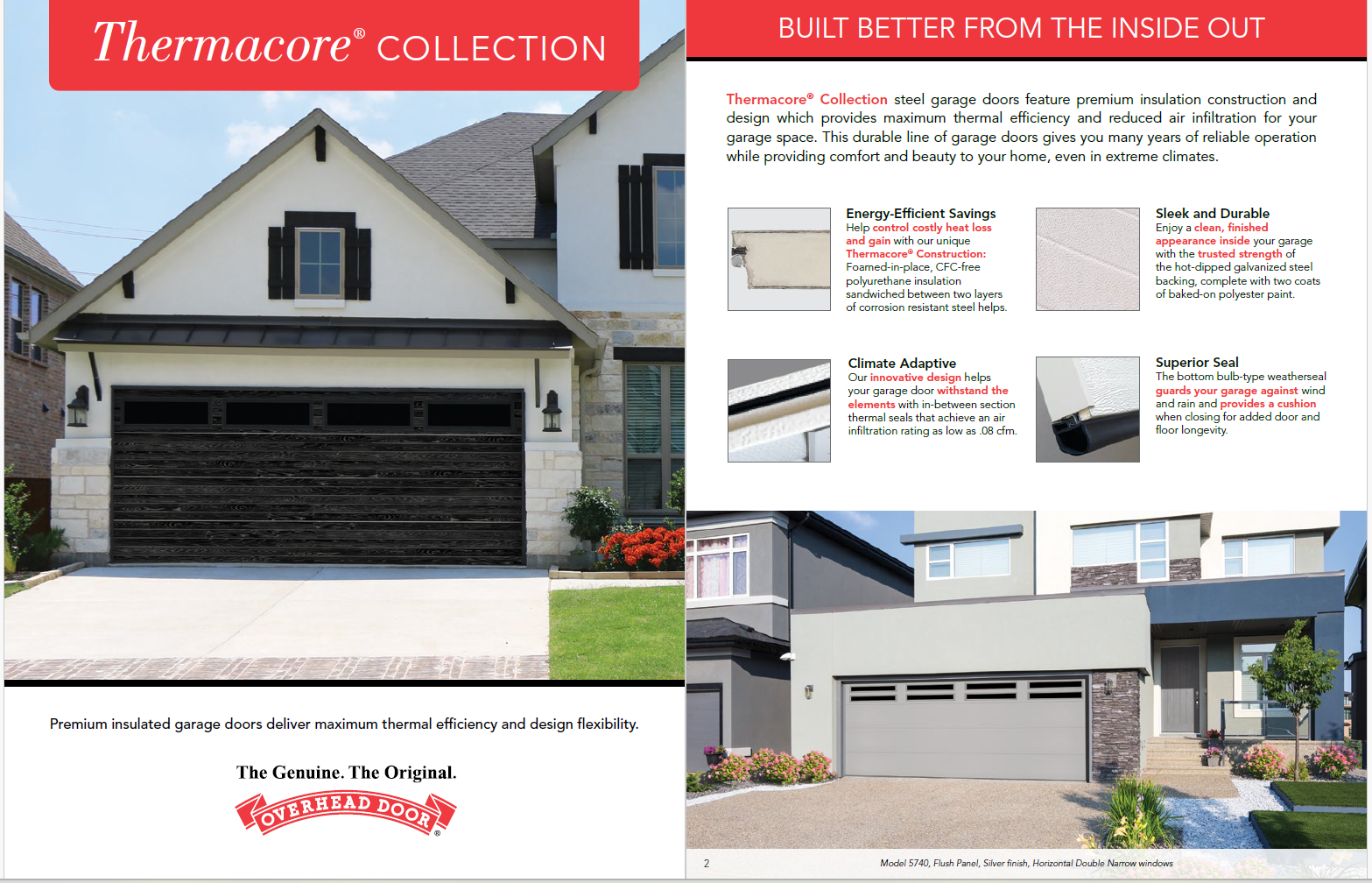

Premium Insulated Garage Doors for Optimal Performance
Overview of Thermacore® Collection offering high thermal efficiency, durability, and design flexibility.
Features steel garage doors with premium insulation construction for maximum thermal efficiency.
Reduces air infiltration, providing comfort and energy savings.
Designed to withstand extreme climates with durable materials and construction.
Incorporates foamed-in-place, CFC-free polyurethane insulation sandwiched between corrosion-resistant steel layers.
Ensures a clean, finished interior appearance with galvanized steel backing and baked-on polyester paint.
Achieves low air infiltration ratings as low as 0.08 cfm with thermal seals.
Equipped with a bottom bulb-type weatherseal for wind and rain protection, extending door and floor longevity.
Thermacore® Collection Model Options and Specifications
Overview of different models, their features, and suitability for various needs.
Model 5760: Superior option for extreme climates, with 2” thickness, high wind load capabilities, and U-factor of 0.10.
Model 5740: Most versatile, offering extensive style, color, and window options; FBC approved for high-wind areas.
Model 5720: Best value, balancing quality and affordability with durable insulation and energy efficiency.
All models verified under DASMA Thermal Performance Verification Program; lower U-factor indicates better thermal performance.
Model 5760 excels in harsh conditions, with hurricane-level protection and Florida Building Code approval.
Model 5740 offers customization and high wind resistance, suitable for storm-prone areas.
Model 5720 provides reliable insulation and protection at a cost-effective price point.
Color, Finish, and Panel Options
Overview of available finishes, colors, and panel styles for customization.
Painted finishes include White, Almond, Sandstone, Brown, Black, and Terra Bronze.
Embossed wood grain adds durability and aesthetic appeal.
Modern metallic finishes available in Silver, Dark Bronze, Black Frost.
Artisan Wood Grain® Plank and Bi-directional Finishes offer textured, sophisticated looks.
Panel styles include Standard, Vertical Short, Long, Flush, and Microgroove.
Colors and finishes may vary due to printing; samples recommended for accurate matching.
Window Styles, Placement, and Glass Types
Overview of window options to enhance aesthetics and natural light.
Multiple window styles available, such as Clear, Cascade, Prairie, Stockton, Winston, Sherwood, Williamsburg, Wyndbridge, and more.
Windows can be placed vertically or horizontally, with options for left or right placement.
Available on various panel types, with some styles exclusive to certain finishes.
Glass options include double strength, with choices like Obscure, Satin Etched, Gray Tint, Green Tint, and Bronze Tint.
Windows add natural light and style, with some featuring Artisan Wood Grain® Bi-directional Finishes.
Hardware, Openers, and Safety Features
Overview of decorative hardware, opener options, and safety enhancements.
Decorative hardware options include Arrow, Conifer, Aspen, Fleur De Lis, Barcelona, Spear, Bean.
Garage door openers can be upgraded with features like battery backup and Wi-Fi control via OHD Anywhere® system.
Battery backup options ensure operation during power outages.
Overhead Door™ brand openers are designed for performance, safety, and quiet operation.
Distributors assist in selecting suitable openers and accessories.
Summary and Brand Legacy
Overview of the brand’s history, quality assurance, and customer support.
Overhead Door™ Brand has over 100 years of industry leadership since 1921.
Pioneered the first sectional garage door and electric opener.
Participates in DASMA Thermal Performance Verification Program for quality assurance.
Offers a visualizer tool, DoorDreamer®, to help customers design their ideal garage door.
Committed to innovation, quality, and trusted service through a network of over 400 distributors.
Guarantees product excellence with the Red Ribbon™ brand assurance.
